Drop-Forged Crosby Clamps – Strength You Can Trust
When it comes to securing wire ropes with maximum strength and reliability, drop-forged Crosby clamps are the industry standard. Known globally for their superior construction, precision engineering, and unmatched holding power, Crosby clamps are trusted across a wide range of heavy-duty applications - from construction and mining to marine and rigging operations.

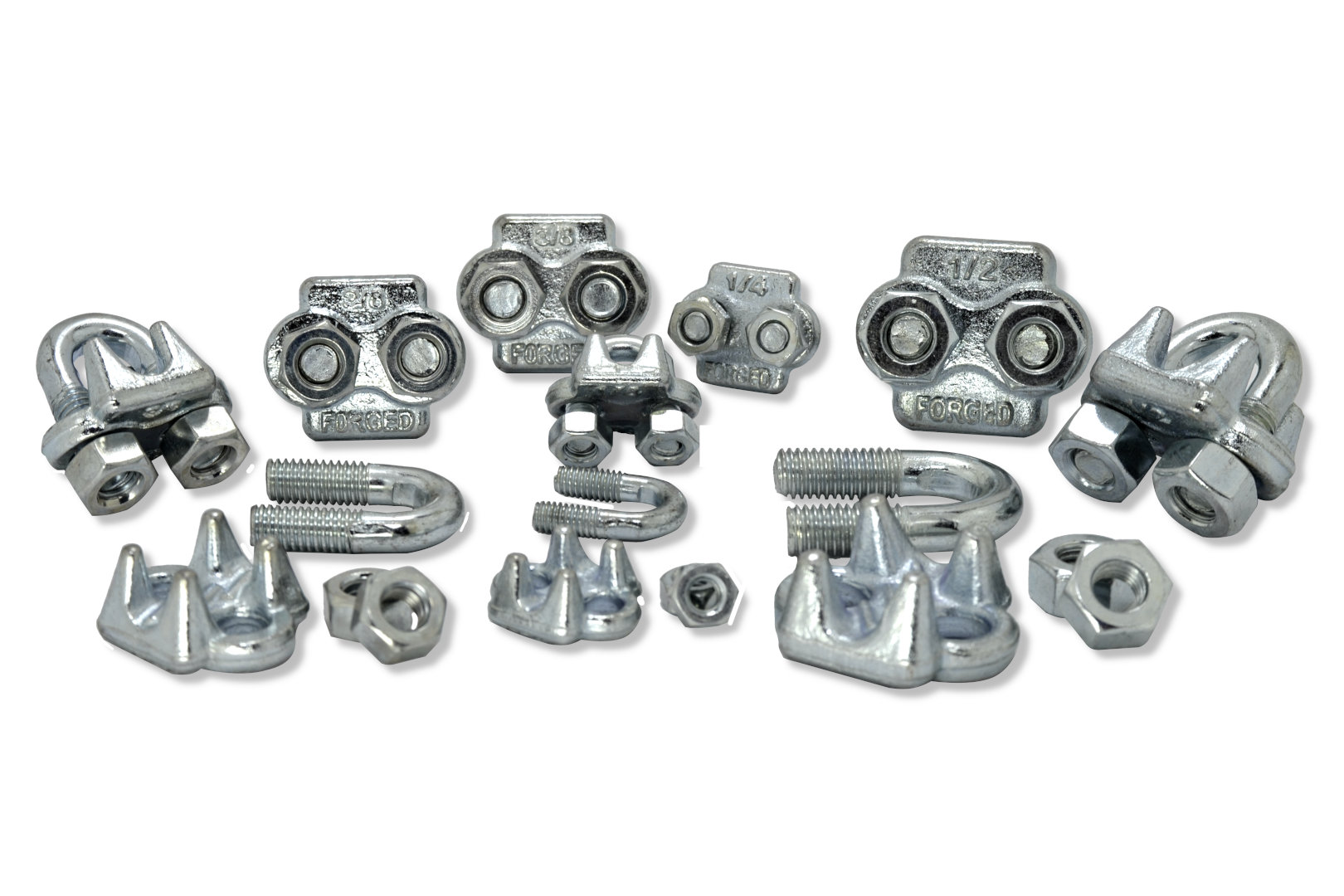

Key Features of Our Drop Forged Crosby Clamps:
- Drop-Forged High Tensile Steel Saddle: Stronger and more durable than cast versions, ensuring long-lasting performance.
- Hot-Dip Galvanised (HDG) Saddle: Excellent corrosion resistance for harsh environments.
- Electro-Galvanised (EG) U-bolt and Nuts: Shiny, rust-resistant finish.
- Easy Installation: Simple to install and adjust on-site with basic hand tools
- Complete assembly: Includes: U-bolt, saddle and two nuts.
Specification Details
Drop-Forged
Quality carbon steel
Finish Galvanised (zinc-coated)
Sizes Available
- 3/16"
- 1/4"
- 3/8"
- 1/2"
Get a quote today
Grades available:
Thread types:
- Metric threads.
Coatings available:
- Ubolt: Electro-Galvanised - Blue zinc.
- Saddle: Hot Dip Galvanised.
Dimensions and Specifications
| SIZE | DIAMETER | BOW LENGTH | INSIDE WIDTH | THREAD LENGTH | BASE LENGTH | BASE THICKNESS | BASE HEIGHT |
|---|---|---|---|---|---|---|---|
| 3/16" | 6 | 31 | 15 | 13 | 29 | 14 | 13 |
| 1/4" | 8 | 34 | 19 | 13 | 37 | 30 | 18 |
| 3/8" | 11 | 49 | 26 | 19 | 49 | 42 | 25 |
| 1/2" | 13 | 61 | 30 | 25 | 58 | 48 | 31 |
Dimensions in mm
Order Your Drop-Forged Crosby Clamps Today!
Choose T&I Chalmers Engineering for unmatched strength and quality in fastening and anchoring solutions. Our drop-forged Crosby clamps are engineered for superior performance, durability, and safety across demanding applications. Count on us for reliable products, expert advice, and dependable service you can trust from start to finish.
Frequently Asked Questions
What Are Crosby Clamps?
Crosby clamps, also known as wire rope clips, are mechanical devices used to fix the loose end of a wire rope back to the main length, forming a loop or eye. The drop-forged version offers added strength and durability, making it ideal for critical applications where safety and performance are non-negotiable.
Made from forged steel and hot-dip galvanized for corrosion resistance, these clamps provide a secure grip that holds under the toughest conditions. The signature U-bolt, saddle, and nuts design ensures even distribution of clamping pressure while protecting the wire rope strands from damage.
What Are Crosby Clamps Used For?
Construction: Used for temporary or permanent guy lines, scaffolding supports, and hoisting systems.
Marine & Offshore: Essential for mooring lines, towing cables, and deck rigging.
Mining & Heavy Industry: Used for anchoring winch cables, hoists, and load-bearing slings.
Transport & Logistics: Ideal for securing loads, lifting slings, and tie-down systems.
Utilities & Infrastructure: Supporting overhead lines, towers, and suspended systems.
